Ceramic Wool Pipe

Product Item：HUALI-CWP

Ceramic Wool Pipe

High temperature stability

soud insulation

fire prevention

Description

HUALI®Ceramic Wool Pipe Overview:

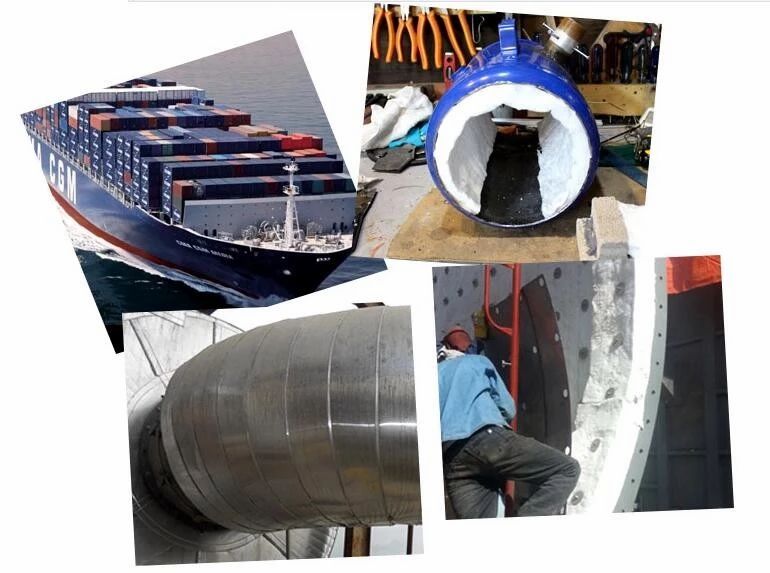

Huali Ceramic wool is made from aluminum silicate stone, burn above 2000℃ electric stove melt, spray to blow fiber. It is widely uesed for pipe and equipments of pyroelectricity, petroleum-chemical, boats, building, machines, boilers,etc. with the performance of fire prevention, heat insulation, sound absorption,and other so many technical features.

PRODUCT DETAILS :

1.Dimensions:

Ceramic Wool Pipe
Density	100-200kg/m3
Length	1m
Dimatere	φ18-1080mm
Thickness	30-160mm
Remark	Special size can be customized

2.Technical Parameters:

Item		Ceramic Wool Pipe	High Grade
Use temperature (℃)		1000	1260
Bulk density(kg/ m3)		100-180	150-300
Thermal conductivity (average temperature70±52)( w/ m.k)		0.034(20℃) 0.09(400℃) 0.12(600℃)	0.127(600℃) 0.2(1000℃)
Shrinkage on heating (%)		-3.5	-2
Slag ball content(%)>0.25mm		11	13.6
Insulation (24h)		600℃	1000℃
ceramin wool pipe
Density	100-180kg/m3
Inner diameter	Φ18-1080mm
Thickness	30-160mm
